ECO-FLEX 185-200

TRAILER SYSTEM

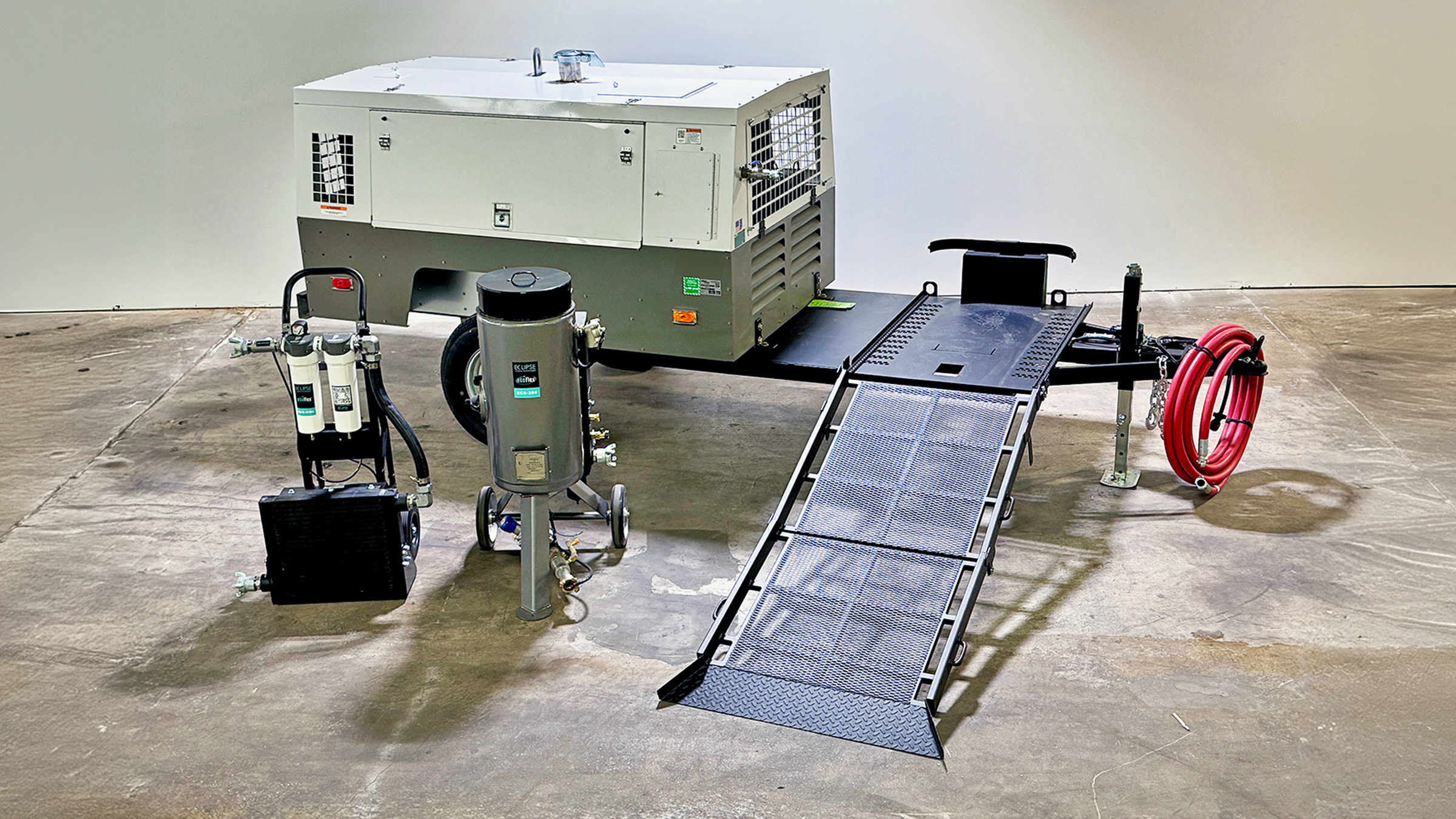

Introducing the ECO-Flex 185-200 Tow-Behind System by Eclipse Surface Technologies—a robust and versatile solution engineered for demanding industrial and commercial surface preparation tasks. This comprehensive system integrates a powerful 185 CFM twin-screw diesel air compressor, an ECO-Aire® Maxx air dryer, and the advanced ECO-200 wet/dry combo blaster, all mounted on a durable trailer with a bi-fold ramp for maximum portability.

KEY FEATURES OF THE ECO-FLEX 185-200:

ECO-200 Combo Blaster at a job site

High-Performance Blasting Capability

Equipped with the ECO-200 wet/dry combo blaster, this system allows seamless transition between traditional dry blasting and wet abrasive blasting with the flick of a switch. This flexibility ensures optimal performance across a wide range of applications, from heavy-duty industrial cleaning to delicate restoration projects.

ECO-200 Combo Blaster as a part of the ECO-Flex 185-200 Trailer System

Enhanced Power, Incredible Efficiency

The integrated 185 CFM twin-screw diesel compressor delivers substantial air capacity at 100 PSI, providing the power necessary for large-scale blasting operations. Paired with the ECO-Aire® Maxx air dryer, it ensures a consistent supply of clean and dry air, enhancing blasting efficiency and preventing moisture-related issues.

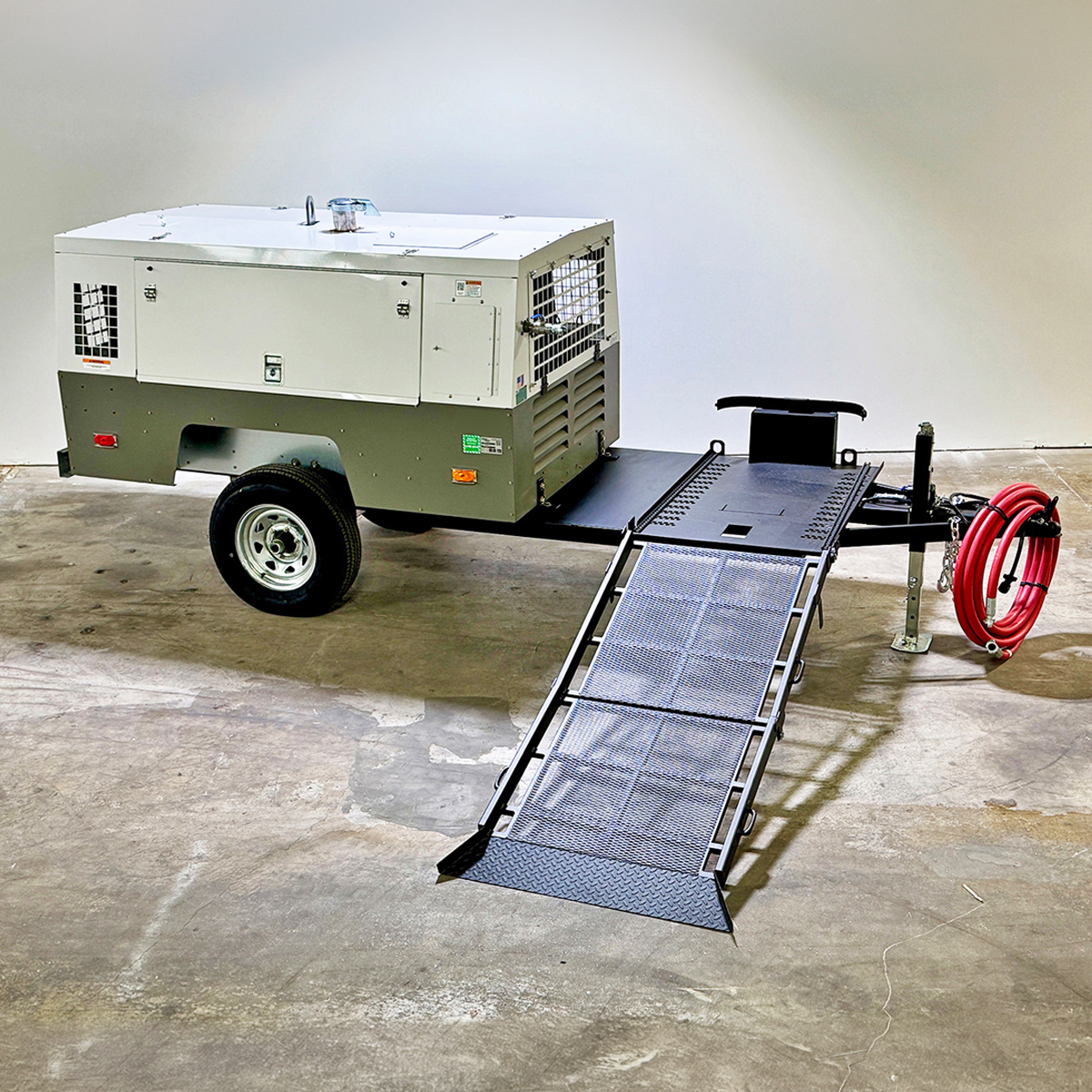

ECO-Flex 185-200 Trailer Unit Components (side profile)

Rugged, Compact & Portable Design

Mounted on a sturdy trailer measuring 168″ L x 59″ W x 57″ H with a bi-fold ramp, the ECO-Flex 185-200 is designed for easy transport and quick setup. Its rugged construction makes it suitable for larger industrial and commercial projects, while its portability allows for flexibility in nearly any job site or harsh work environment.

ECO-FLEX 185-200 TECHNICAL SPECIFICATIONS

Dimensions:     168″L x 59″W x 57″H
GVWR:     3550 lbs
Air Capacity:     185 cfm @ 100 psi
Pot Size:     2.0 cubic ft pot = +/- 100 lbs of abrasive
Media Usage:     +/- 100 lbs of abrasive
Air Supply Hose:
  50′ of 1″ hose, storage reel optional
Blast Hose:     50′ standard, up to 200′ with ext.
Run Time:     60-90 minutes
Blast Pressure Range:     5-125 psi
Water Tank Capacity:     25 gallons (included)
Air Dryer?     Yes (included)
On-Board Water Pump?     Yes

ECO-Flex 185-200 Trailer System - Component Breakdown

CALL FOR QUOTE:

(888) 99-BLAST

FREQUENTLY ASKED QUESTIONS

Find answers to common questions about the ECO-Flex 185-200 Trailer System. Learn about its features, applications, maintenance requirements &  how it can meet your surface prep needs. Get the most out of your ECO-Flex 185-200 with these helpful insights.

How does the ECO-Flex 185-200 differ from the ECO-Flex 92-100 system?

The ECO-Flex 185-200 features a more powerful 185 CFM compressor compared to the 92 CFM compressor in the ECO-Flex 92-100, making it better suited for larger industrial applications. Additionally, it includes the ECO-200 blaster with a 2.0 cubic foot pot size, offering greater media capacity than the ECO-100 blaster in the 92-100 system.

What types of projects is the ECO-Flex 185-200 ideal for?

This system is ideal for large-scale industrial and commercial projects, including paint and coating removal, rust and scale elimination, surface preparation, and heavy-duty cleaning tasks. Its ability to switch between wet and dry blasting makes it versatile for various surface conditions and materials.

What are the specifications of the ECO-200 blaster included in the system?

The ECO-200 blaster features a 2.0 cubic foot pot size, media usage of approximately 100 lbs. depending on abrasive type, water usage of 12-15 gallons per hour, and a blast pressure range of 5-125 PSI. It comes with a 50′ blast hose, with options to extend up to 200′ as needed.

Is the ECO-Flex 185-200 suitable for delicate restoration work?

Yes, despite its industrial strength, the system’s adjustable pressure settings and wet blasting capability make it suitable for delicate restoration tasks, such as historic preservation and masonry cleaning, where gentle yet effective surface treatment is required.

What maintenance is required for the ECO-Flex 185-200 system?

Regular maintenance includes inspecting hoses and fittings for wear, checking the air compressor and dryer for proper operation, and ensuring the ECO-200 blaster is clean and functioning correctly. Following the manufacturer’s maintenance guidelines will help maintain optimal performance and extend the system’s lifespan.
